Yamaha GYTR Tenere 700 World Raid Handling Kit

Ténéré 700 World Raid GYTR Handling kit

Taking things a step further, the GYTR Handling kit focuses on getting the chassis of the Ténéré 700 World Raid rally-ready, with new race-specification wheels and suspension combining to create a motorcycle prepared to take on the roughest terrains with outstanding handling and stability.

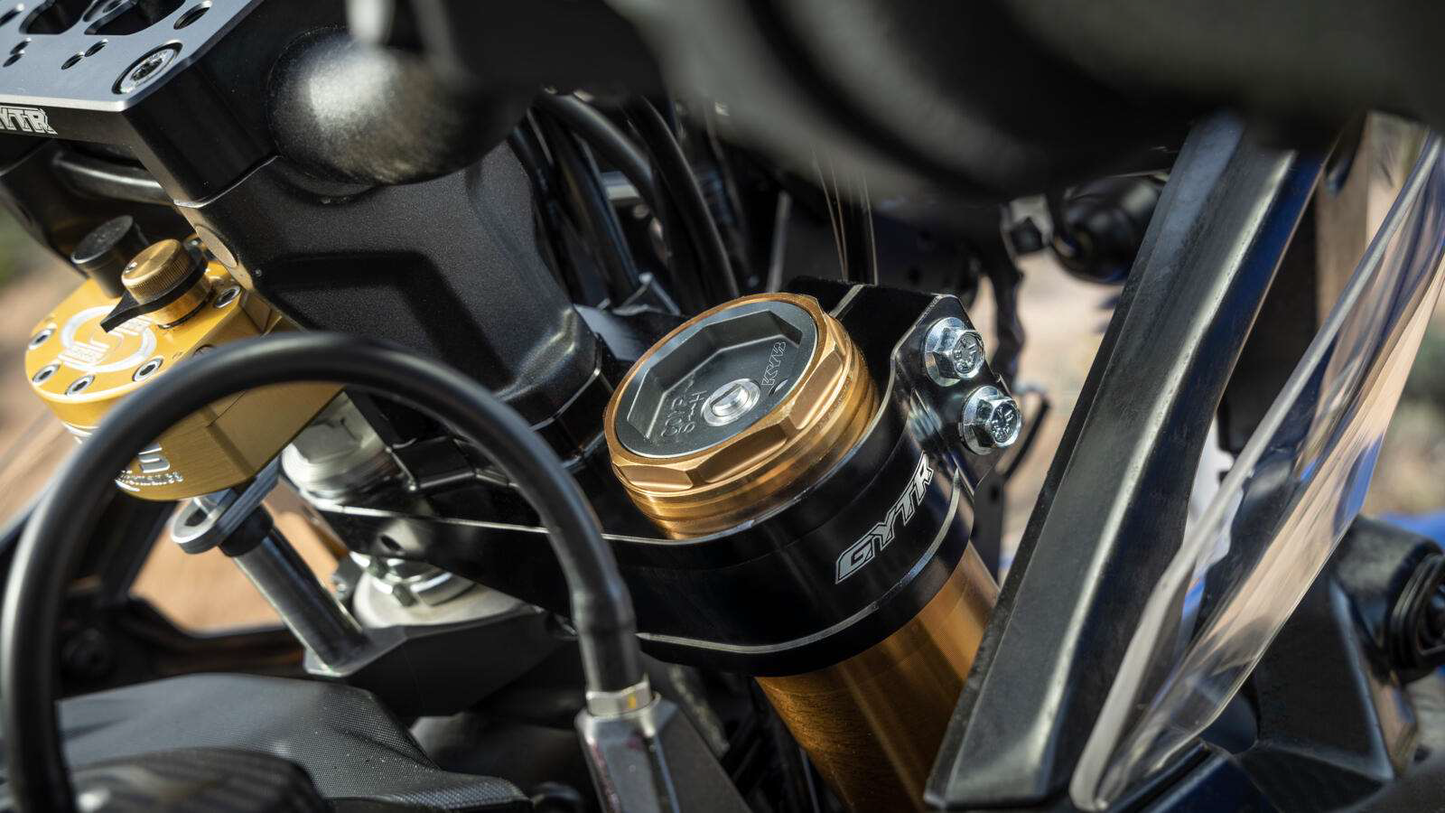

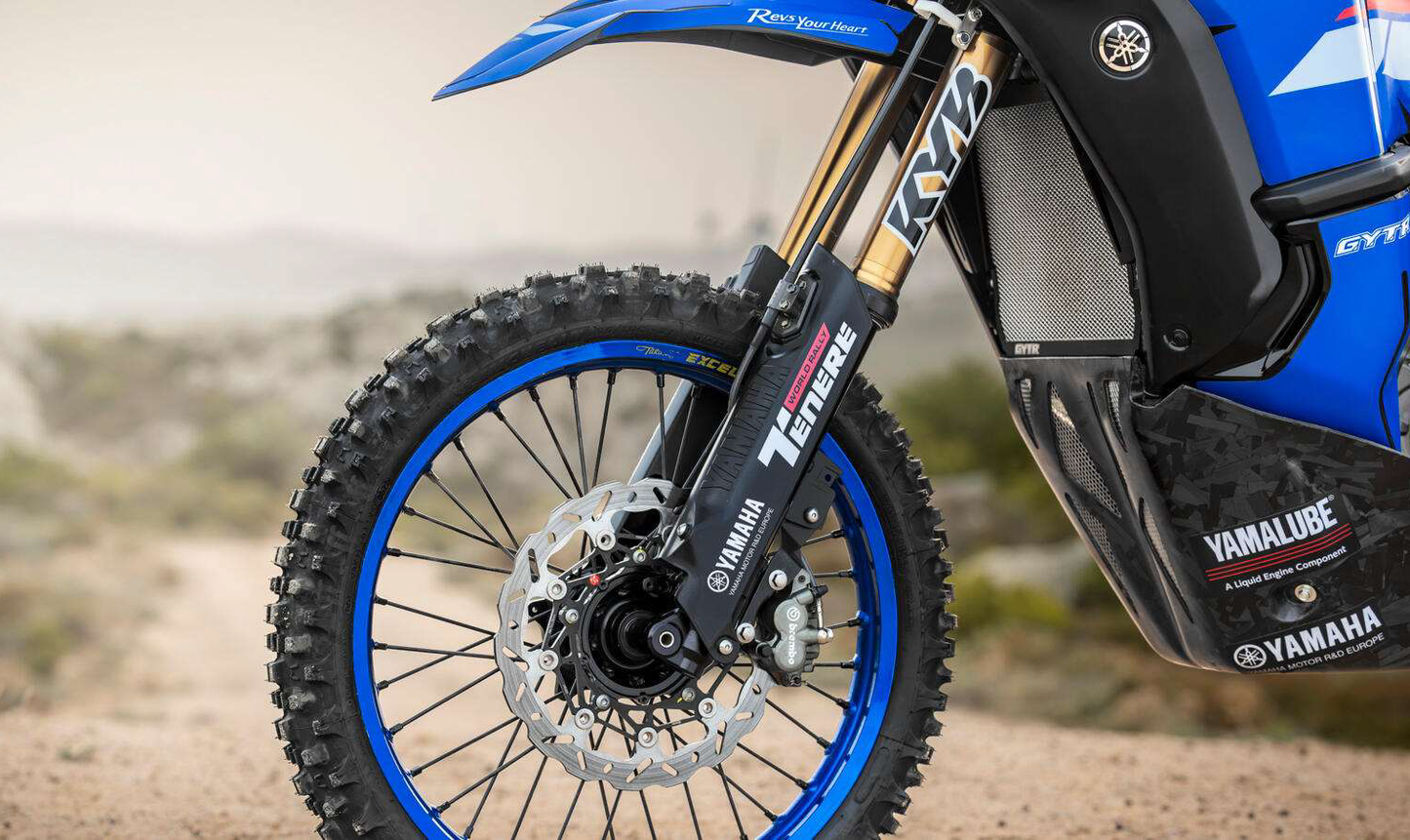

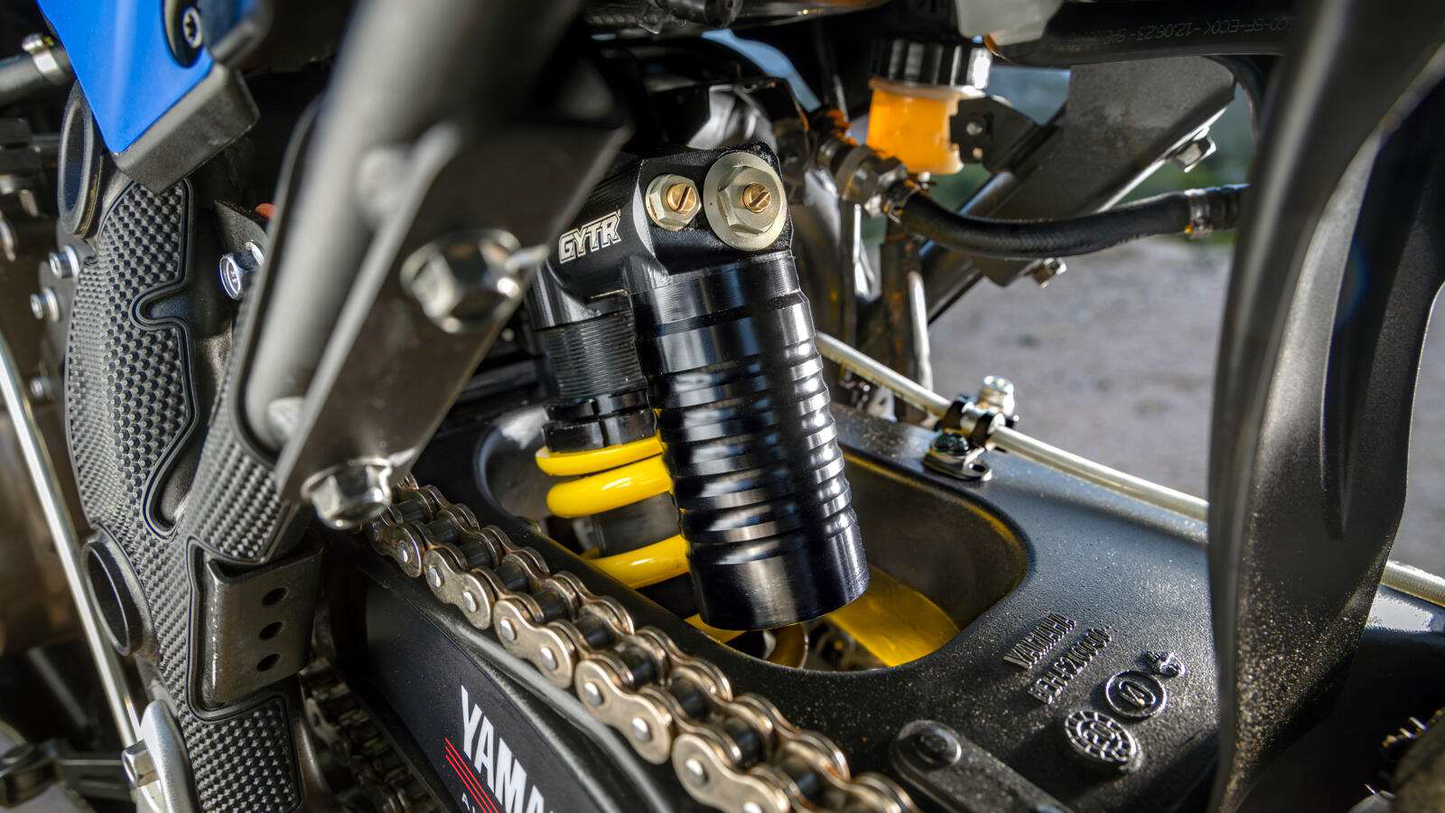

Race-developed 48mm diameter KYB closed cartridge forks feature DLC coated tubes and have an increased stroke of 270mm, while a mid-speed valve allows for adjustment over a much wider range. To enable the fitment of the upgraded front suspension, the kit also includes a GYTR triple clamp assembly, machined from billet aluminium 6082 anodised in black colour. The triple clamp is matched with a compact, yet fully adjustable steering damper, manufactured by Scotts Performance. With 25 settings, which can be adjusted on the fly, the damper has been developed to increase stability and reduce rider fatigue when riding long stints on rough terrain. The triple clamp kit also contains a bracket to keep the standard steering damper. At the rear, a fully adjustable Paioli shock absorber replaces the stock item, featuring high and low-flow rate pistons to optimise compression and rebound damping for improved rider feedback.

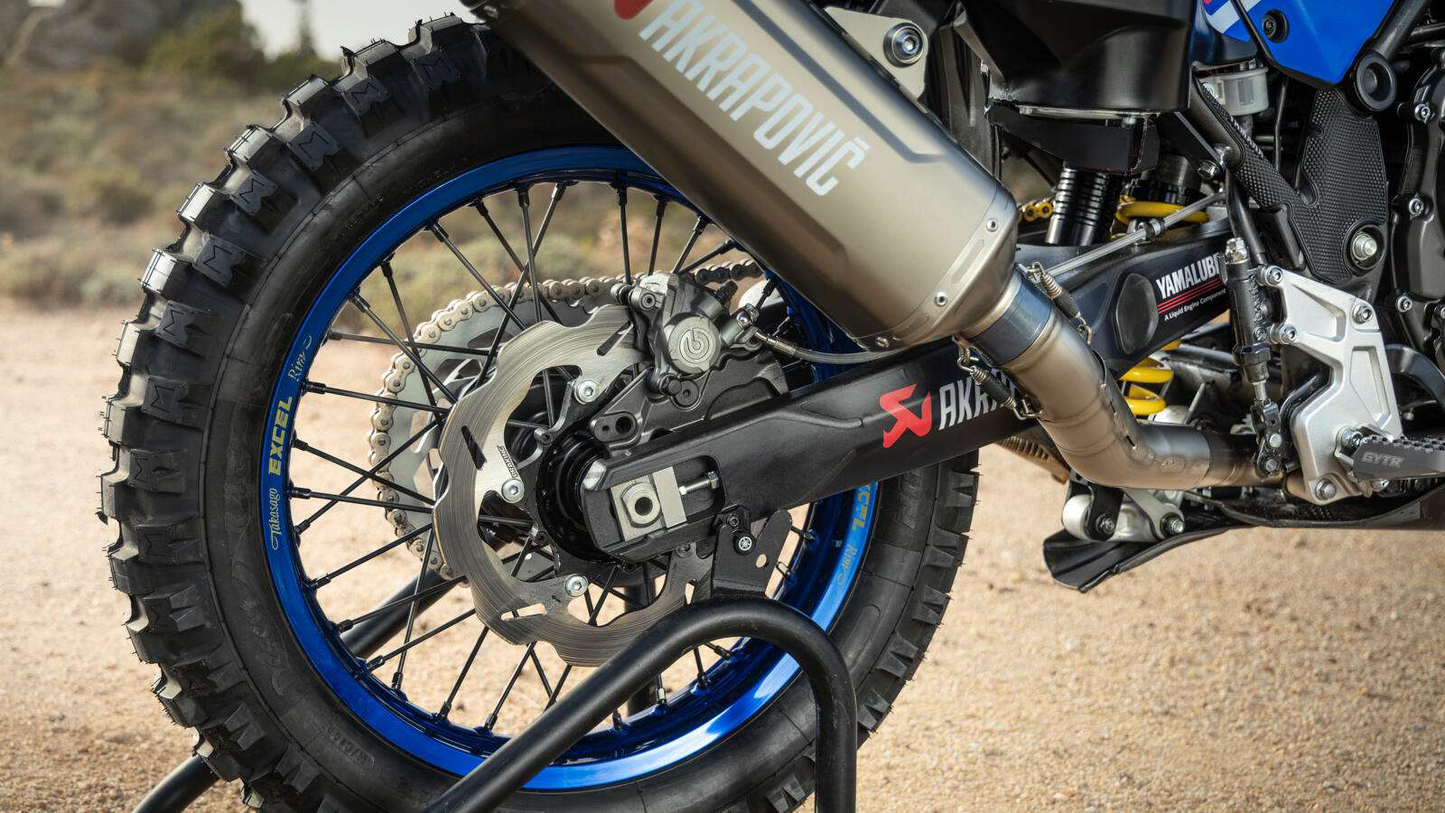

GYTR rally wheels, prepared by Haan Wheels using Excel rims and machined hubs in aluminium, reduce weight, while there’s also a new braking system front and rear with Brembo calipers and bigger 300mm discs from Braking up front, with a 267mm rear disc mated to the stock caliper. The GYTR Handling kit ECU allows for deletion of the ABS system and immobiliser. Also included in the kit is a lightweight chain and sprocket set with revised ratios and a new radiator assembly consisting of a bigger radiator and separate oil cooler, as well as all the hoses and brackets required for installation. The kit also includes a black anodised GYTR radiator guard to protect against branches, stones and other debris.

The final element of the Ténéré 700 GYTR Handling kit is the GYTR high front fender for that authentic ‘Dakar’ look and additional protection from whatever the stages throw at you.

This kit includes:

• GYTR Haan front wheel
• GYTR Haan rear wheel
• GYTR chain and sprocket kit
• GYTR front brake kit
• GYTR rear brake kit
• GYTR radiator assembly kit
• GYTR radiator guard
• GYTR steering damper
• GYTR triple crown handle assembly
• GYTR KYB front forks 48mm str 270
• GYTR Paioli rear shock
• GYTR front high fender kit

Required Part : GYTR Stage 2 ECU - GYTH591A0100
