OEM Yamaha Frame YZF-R1 2015-2022

• This Genuine Yamaha frame fits:
• YZF-R1 2015-2022
• YZF-R1M 2015-2022

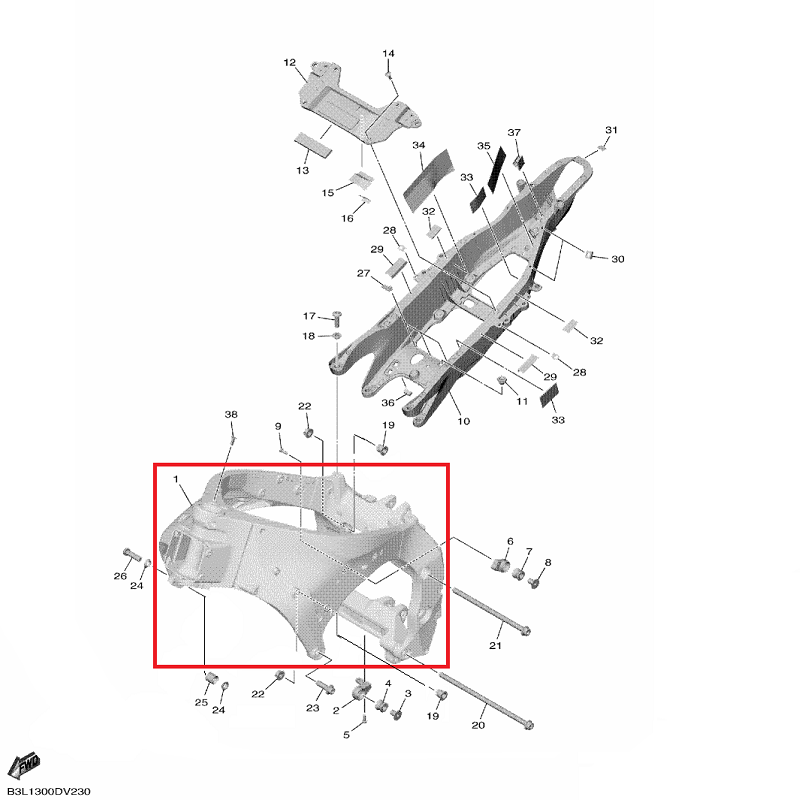

• If you would like any of the other parts shown on this diagram and you cannot find them listed on the website please contact us and we will be happy to assist you
• Part number 1 (highlighted on the parts diagram)
• Part Number 2CR-21110-00

Related Parts
01: 2CR-21110-00 Frame Comp
02: 2CR-21435-00 Bracket, Muffler 1
03: 90387-08021 Collar
04: 5VY-14747-00 Damper, Muffler
05: 90110-06248 Bolt, Hexagon Socket Head
06: 2CR-21436-00 Brkt. Muff 2
07: 5VY-14747-00 Damper, Muffler
08: 90387-08021 Collar
09: 91312-06016 Bolt, Hexagon Socket Head
10: 2CR-21190-10 Rear Frame Comp
11: 2CR-85916-00 Cap, Damper
12: 2CR-21214-00 Reinf, Frame RR
13: 90520-06007 Damper, Plate
14: 90111-06155 Bolt, Hex Socket Button
15: 2CR-22877-00 Seal 5
16: 2CR-22878-00 Seal 6
17: 90149-10002 Screw
18: 2CR-21116-00 Collar
19: 5YU-21495-00 Bolt, Engine Adjusting
20: 90110-12010 Bolt, Hexagon Socket Head
21: 90110-12008 Bolt, Hexagon Socket Head
22: 90179-12004 Nut
23: 90110-12007 Bolt, Hexagon Socket Head
24: 14B-21414-00 Boss Engine Mount
25: 14B-21424-00 Boss Engine Mount
26: 90111-12003 Bolt, Hex Socket Button
27: 7TG-2214F-00 Damper 1
28: 2CR-22873-00 Seal 1
29: 2CR-22874-00 Seal 2
30: 2CR-22875-01 Seal 3
31: 5SL-21268-00 Seal
32: 2CR-22876-00 Seal 4
33: 5JW-2164K-00 patch 5
34: 5C7-21779-00 Damper, Locating 2
35: 5TH-21268-01 Seal
36: 13S-28415-00 Damper 1
37: 90464-13004 Clamp
38: 90269-05055 Rivet
