OEM Yamaha Side Stand, Switch & Shift Pedal Assembly YZF-R1 2020-2022

This part has been removed from a brand new, zero miles, Yamaha YZF-R1 2022 which we have been used for the Toprak builds.

• This Genuine Yamaha side stand & shift pedal assembly fits:
• YZF-R1 2020-2022
• YZF-R1M 2020-2022
• The part numbers included in this assembly are:
• 1 x 2CR-27311-00 Side Stand RRP £65.77
• 1 x 90506-18008 Tension Spring RRP £10.15
• 1 x 90445-19002 Hose RRP £3.98
• 1 x B3L-27321-00 Side Stand Bracket RRP £183.89
• 1 x 5VY-14747-00 Damper RRP £4.28
• 1 x 90387-08021 Collar RRP £8.00
• 1 x B3L-27351-00 Side Stand Guide RRP £35.36
• 1 x 90201-146F9 Washer RRP £4.12
• 1 x 90201-10035 Washer RRP £1.19
• 1 x 95602-10200 Nut RRP £2.99
• 1 x 90201-08050 Washer RRP £3.98
• 1 x 90101-08065 Bolt RRP £2.20
• 2 x 90109-10002 Bolts RRP £4.72 each
• 1 x BX4-18110-00 Shift Pedal RRP £170.57
• 1 x 4C8-27434-10 Bolt RRP £18.72
• 1 x 90206-14086 Wave Washer RRP £5.05
• 1 x 90201-08103 Washer RRP £2.33
• 1 x B3L-27406-00 Side Stand Switch & Cover Assy RRP £198.12
• 2 x 90110-05038 Hex Bolts RRP £1.19 each

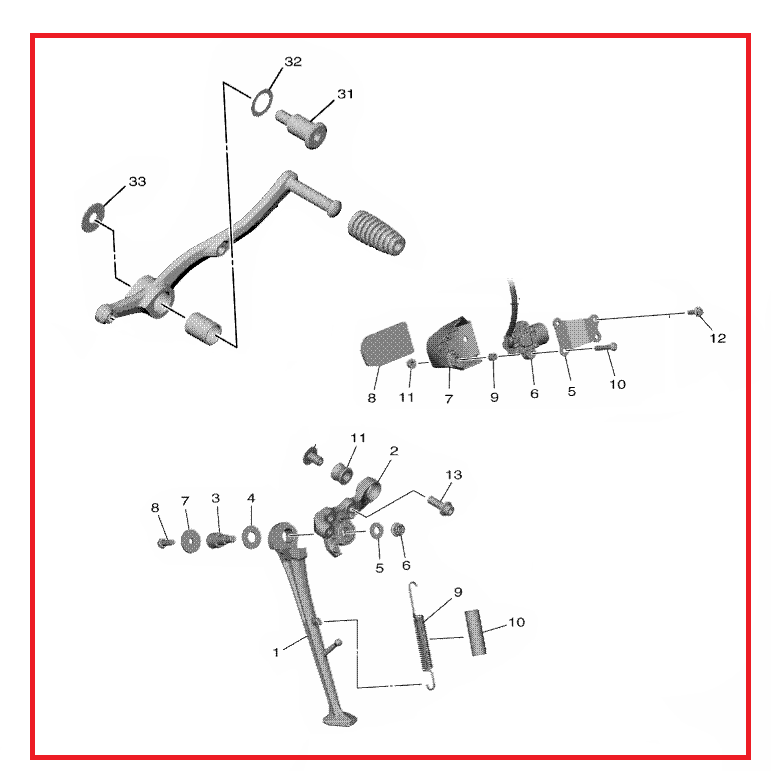

• Please see parts diagram for included items (shown within the red box on the diagram - all other items shown are for reference use and not included)!
• We have removed many standard items from these brand new bikes so if require a specific part that you cannot find listed on our Upcycle Programme please contact us to see if we have it available.
