OEM Yamaha Cable Guide MT-09A 2014-2020

• This Genuine Yamaha cable guide fits:
• MT-09A 2014-2020
• MT-09 2014-2016
• If you would like any of the other parts shown on this diagram and you cannot find them listed on the website please contact us and we will be happy to assist you

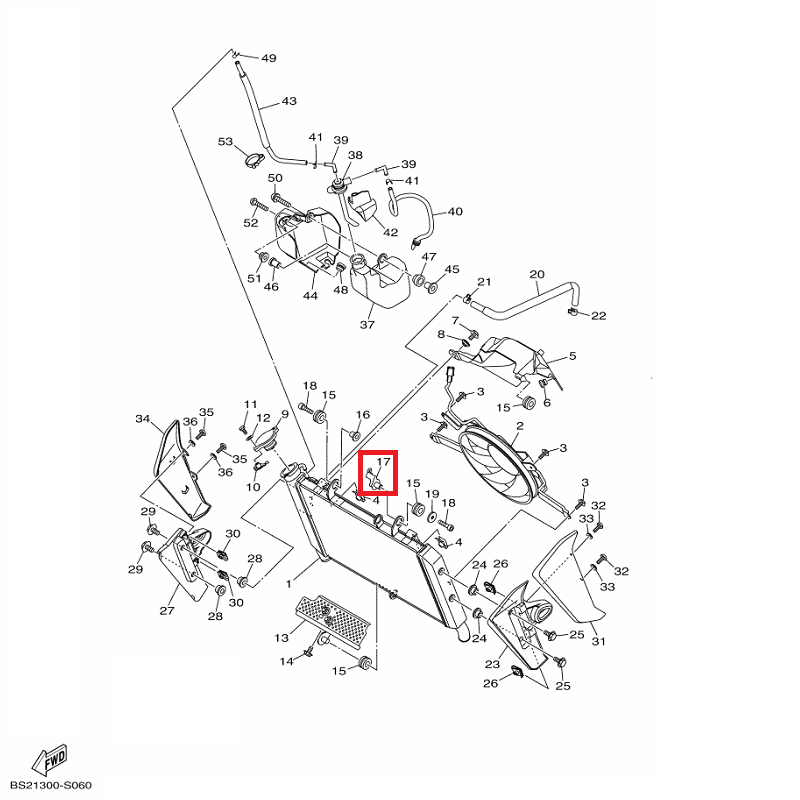

• Part number 17 (highlighted on the parts diagram)
• Part Number 1RC-26132-00

Related Parts:
01: 2PP-12461-00 Radiator Comp
02: 1RC-12405-02 Blower Assy
03: 3D8-12675-00 Bolt, Blower Holding
04: 1AA-12535-00 Plate
05: 1RC-12467-00 Cover, Radiator
06: 90338-07157 Plug
07: 90105-06080 Bolt, Flange
08: 90387-07717 Collar
09: 4FL-12462-00 Cap, Radiator
10: 5FC-12437-00 Stopper
11: 97007-05012 Bolt
12: 92907-05600 Washer, Plate
13: BS2-12637-00 Stay 1
14: 95D32-06012 Bolt, Flange Deep Recess
15: 90480-15363 Grommet
16: 90387-06158 Collar
17: 1RC-26132-00 Guide, Cable 2
18: 91312-06030 Bolt, Hexagon Socket Head
19: 90201-06033 Washer, Plate
20: 1RC-1243A-00 Hose 1
21: 90467-10039 Clip
22: 90467-10039 Clip
23: BS2-2175T-00 Bracket 1
24: 90387-06170 Collar
25: 90119-06137 Bolt, With Washer
26: 90183-05076 Nut, Spring
27: BS2-2175U-00 Bracket 2
28: 90387-06170 Collar
29: 90119-06137 Bolt, With Washer
30: 90183-05076 Nut, Spring
31: BS2-2171E-00-** Cover, Side 5
32: 90111-05002 Bolt, Hex Socket Button
33: 90202-05180 Washer, Plate
34: BS2-2171X-00-** Cover, Side 6
35: 90111-05002 Bolt, Hex Socket Button
36: 90202-05180 Washer, Plate
37: 1RC-21871-00 Tank, Recovery
38: 1RC-21875-01 Cap
39: 1RC-21828-00 Elbow
40: 1RC-21826-00 Pipe, Breather
41: 90467-08075 Clip
42: 1RC-22825-00 Protector 1
43: 1RC-21816-00 Pipe 1
44: 1RC-2172W-00 Cover
45: 90387-06285 Collar
46: 90179-05523 Nut
47: 1RC-21749-00 Collar
48: 90480-13203 Grommet
49: 90467-08075 Clip
50: 90110-06233 Bolt, Hexagon Socket Head
51: 1RC-21748-00 Collar
52: 92012-05030 Bolt, Button Head
53: 90464-07M40 Clamp
