OEM Yamaha Recovery Tank YZF-R1 2015-2022

• This Genuine Yamaha recovery tank fits:
• YZF-R1 2015-2022
• YZF-R1M 2015-2022

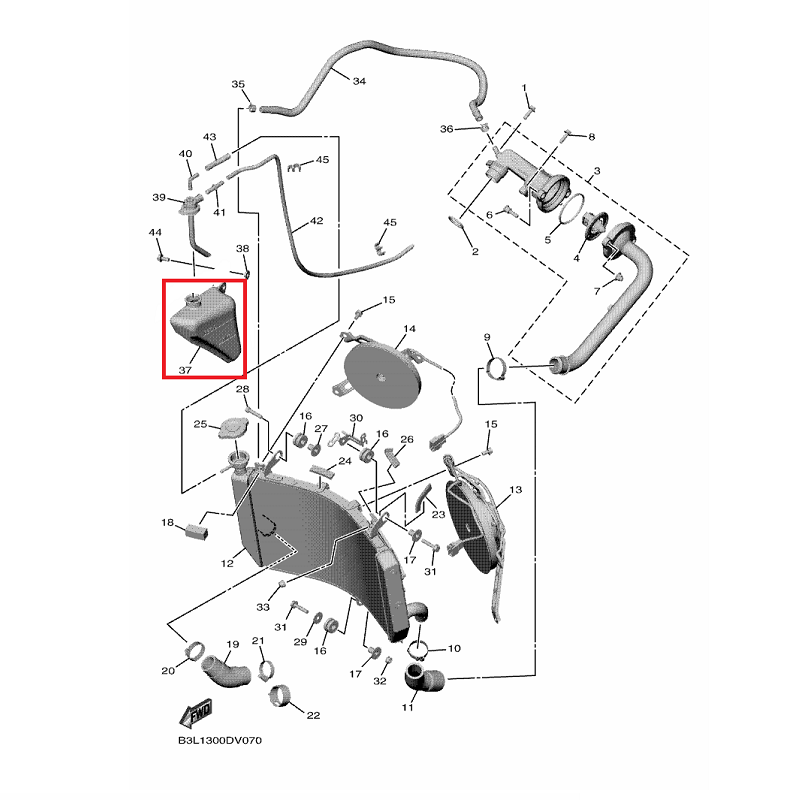

• Part number 37 (highlighted on the parts diagram)
• If you would like any of the other parts shown on this diagram and you cannot find them listed on the website please contact us and we will be happy to assist you
• Part Number 2CR-21871-00-00

Related Parts

01: 90110-06163 Bolt, Hexagon Socket Head
02: 93210-26006 O-Ring
03: B3L-12410-01 Thermostat Assy
04: 4FM-12410-01 Thermostat
05: 93210-54534 O-Ring
06: 2CR-12615-00 Bolt
07: 90176-06017 Nut, Crown
08: 90110-06163 Bolt, Hexagon Socket Head
09: 90467-350A0 Clip
10: 90467-320A0 Clip
11: 2CR-12578-00 Hose 3
12: 2CR-12461-00 Radiator Comp
13: 2CR-12405-00 Blower Assy
14: 2CR-12405-10 Blower Assy
15: 5GJ-12675-00 Bolt, Blower Holding
16: 90480-15363 Grommet
17: 90387-0614M Collar
18: 3P6-21649-00 Damper
19: 2CR-12551-00 Hose 7
20: 90467-320A0 Clip
21: 90450-35001 Hose Clamp Assy
22: 5GV-1246E-00 Cover 2
23: 5VN-24188-00 Mold, Fuel Tank
24: JX4-78329-00 Spacer 2
25: 5SL-12462-00 Cap, Radiator
26: B3L-28245-00 Cap
27: 90387-0614M Collar
28: 91317-06030 Bolt, Hex Socket Head
29: 90201-06071 Washer, Plate
30: 2CR-26279-10 Guide, cable
31: 95827-06030 Bolt, Flange
32: 95607-06200 Nut, Self U-Flange
33: 663-45119-01 Cap, Grease Nipple
34: 2CR-12552-00 Hose 8
35: 90467-11090 Clip
36: 90467-11044 Clip
37: 2CR-21871-00 Tank, Recovery
38: 90387-06681 Collar
39: 2C0-21875-00 Cap
40: 26H-21828-00 Elbow
41: 4XY-14568-00 Joint
42: 2CR-21816-00 Pipe 1
43: 90445-09040 Hose (L50)
44: 95827-06014 Bolt, Flange
45: 90464-10M38 Clamp
